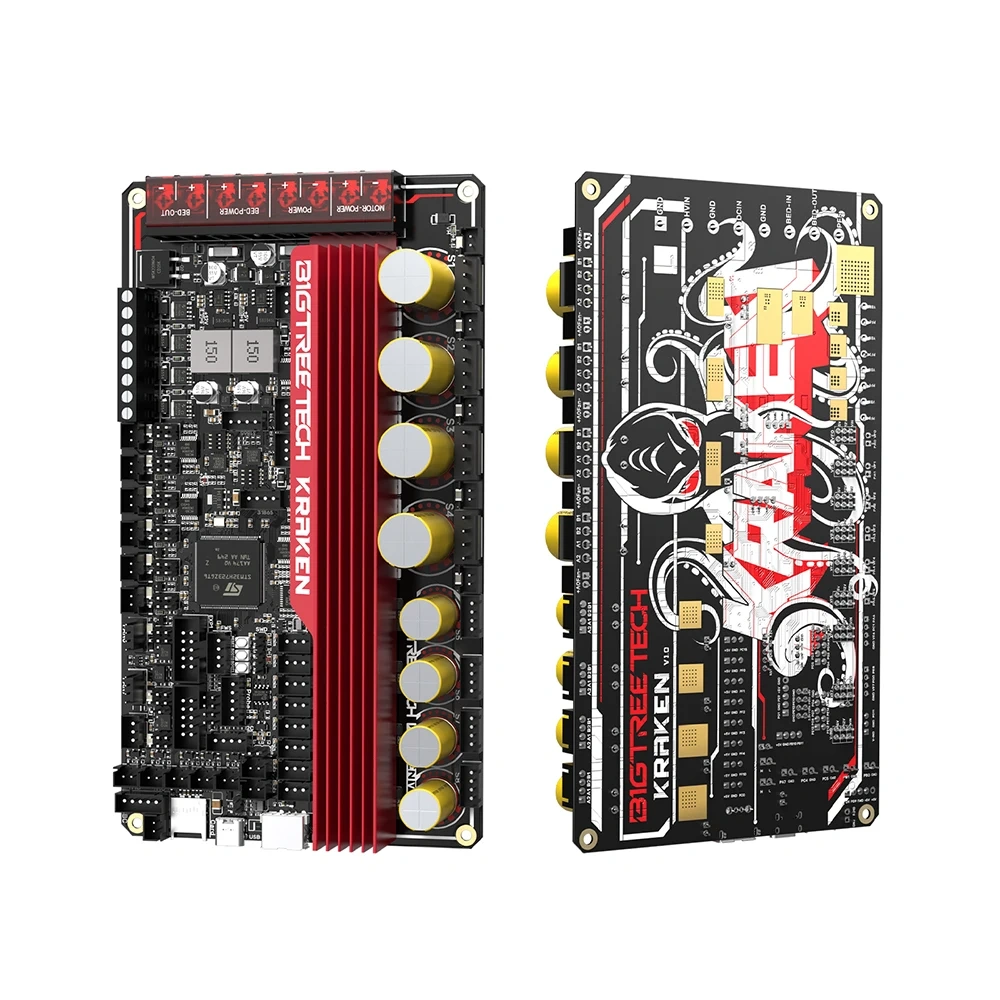

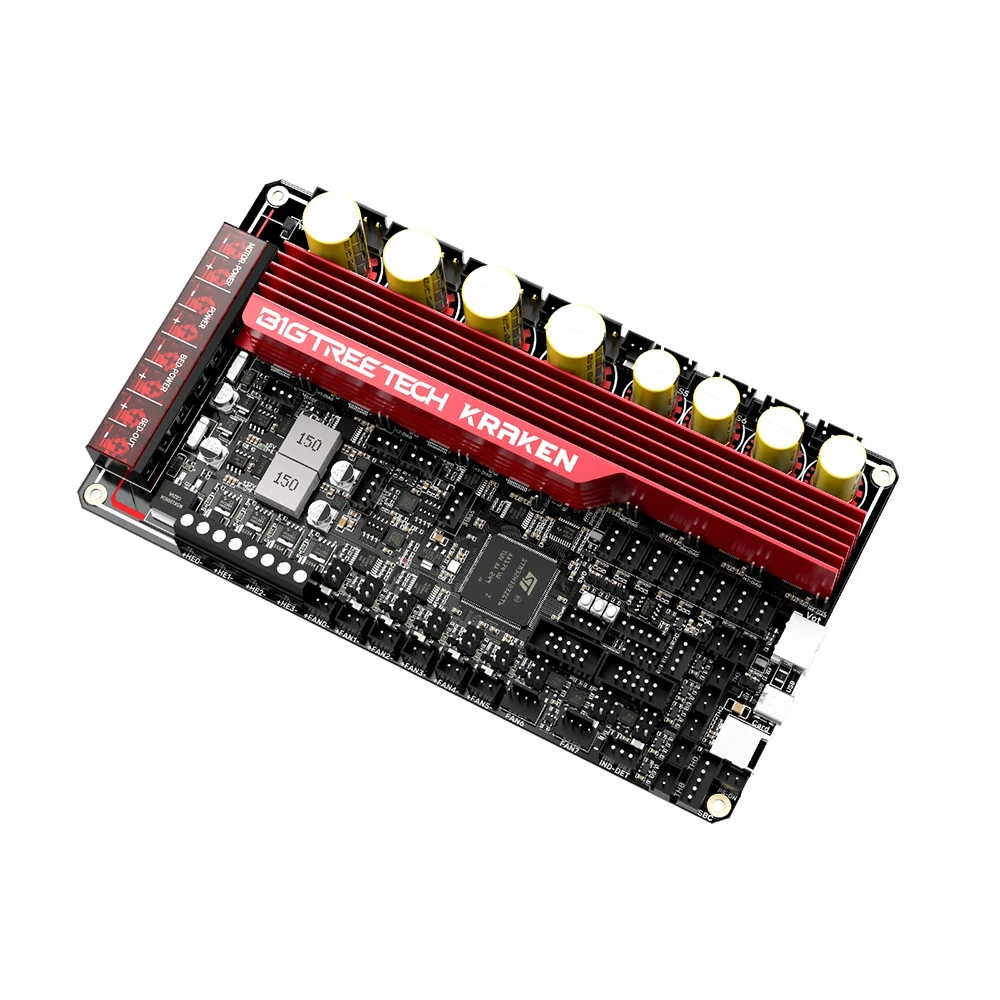

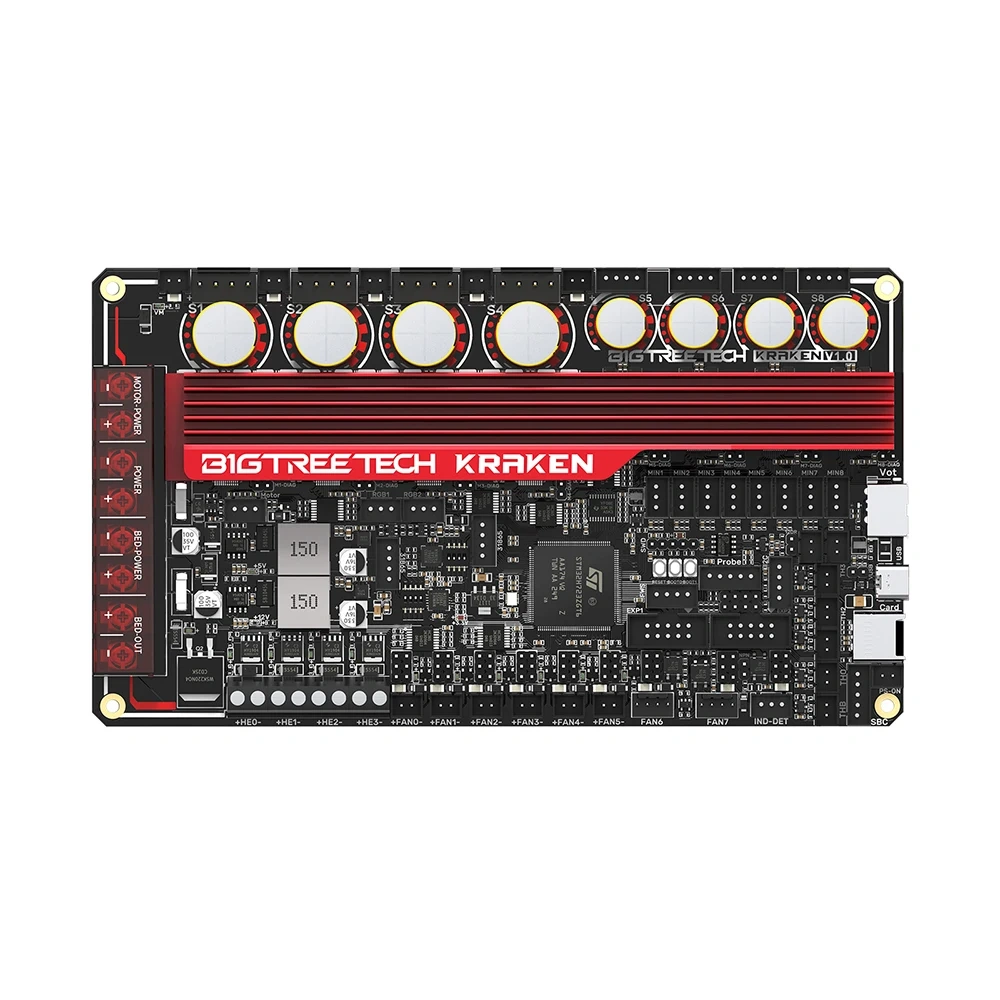

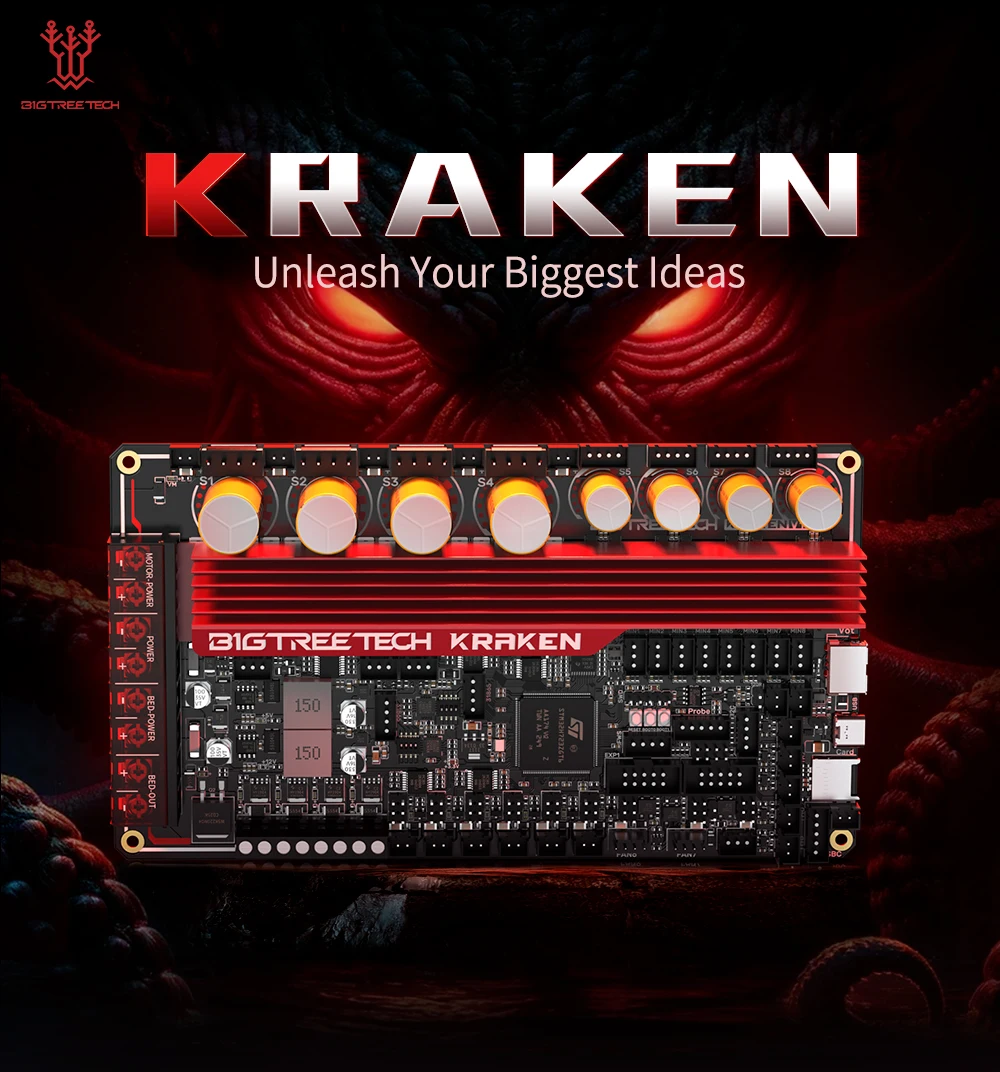

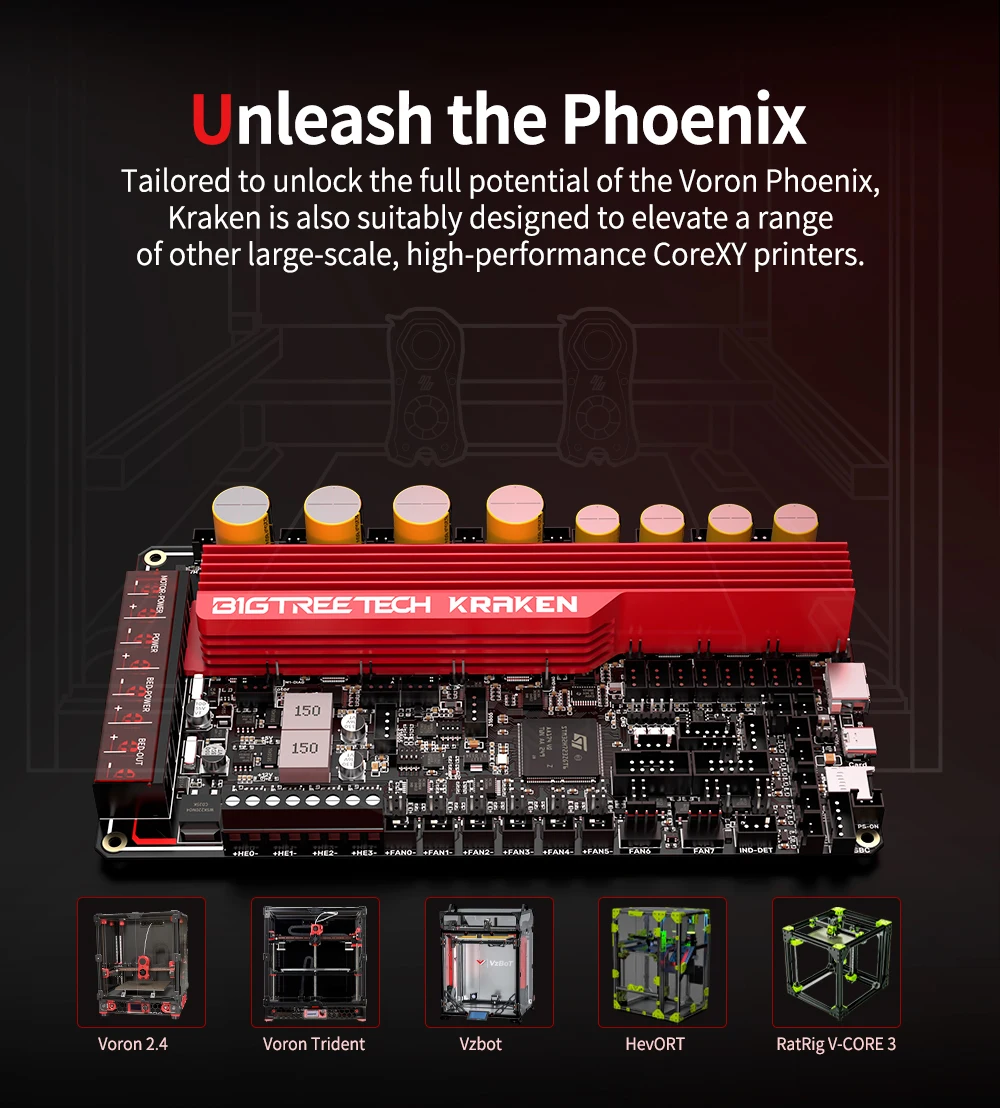

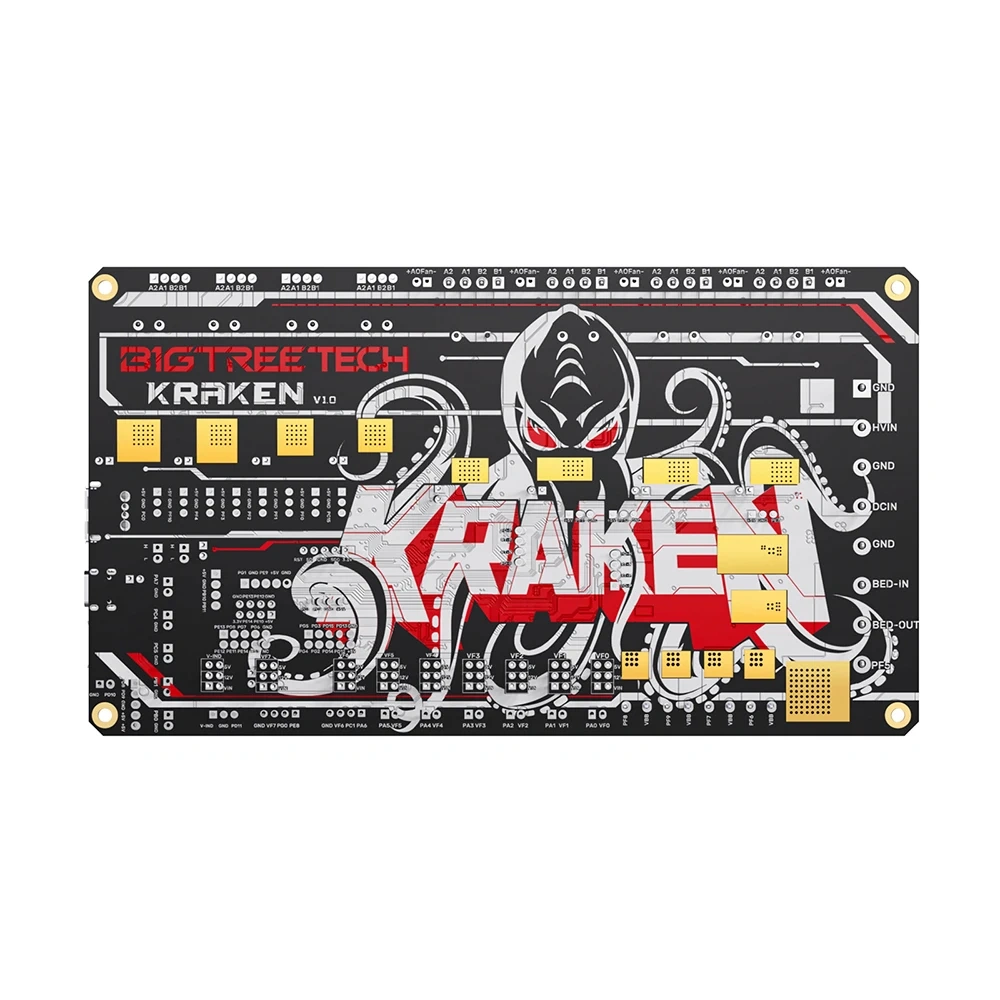

BIGTREETECH Kraken V1.0 motherboard is a 32-bit printer motherboard developed by the 3D printing team of Shenzhen Biq Technology Co., Ltd. for large machines. It has an onboard high-voltage and high-current stepper motor driver, which greatly simplifies the connection between the motherboard and the high-voltage driver, and also greatly saves money. The motherboard uses ID-designed silk screen printing to reduce the installation space in the chassis, and is matched with ID-designed heat sinks for auxiliary heat dissipation, which is both beautiful and practical.

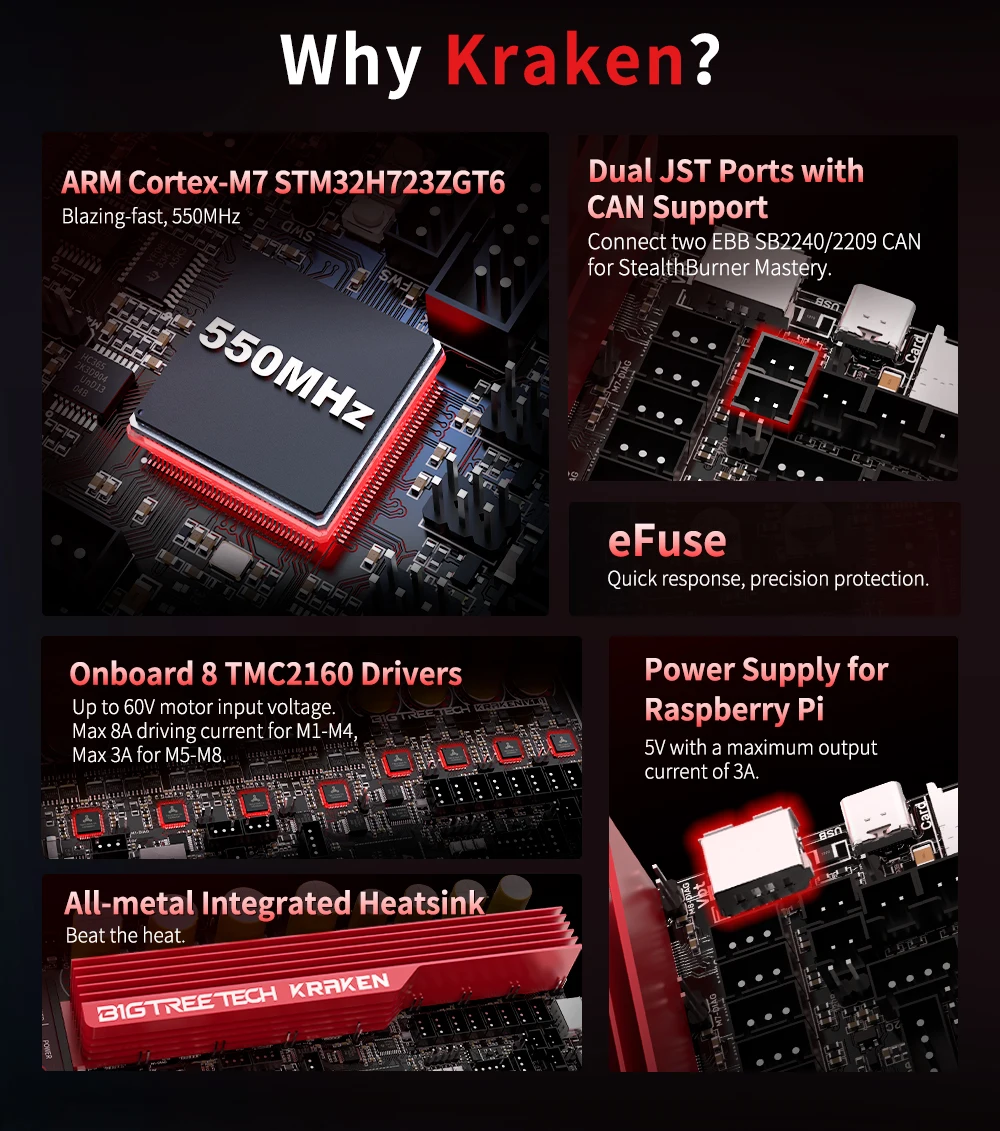

Why Kraken？

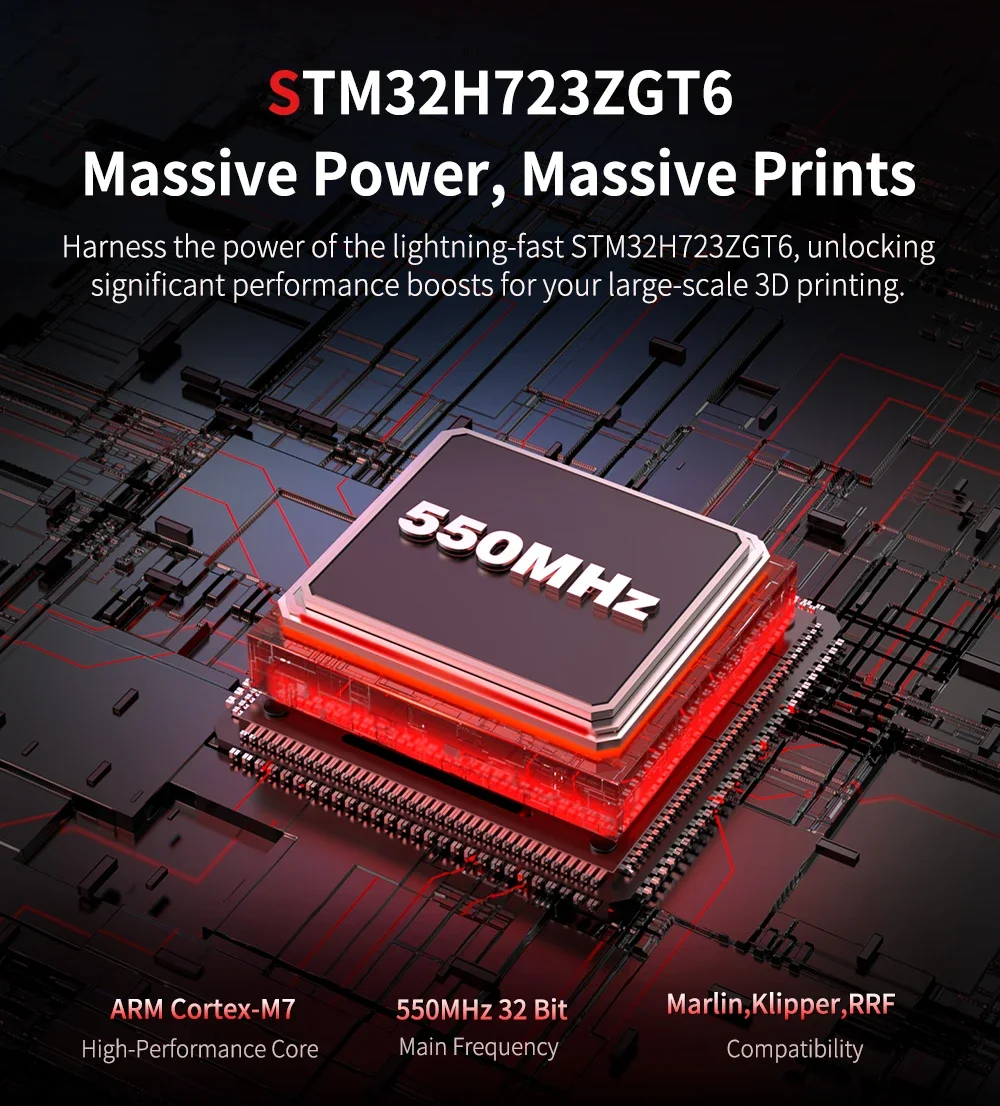

ARM Cortex-M7 STM32H723ZGT6:Blazing-fast,550MHz

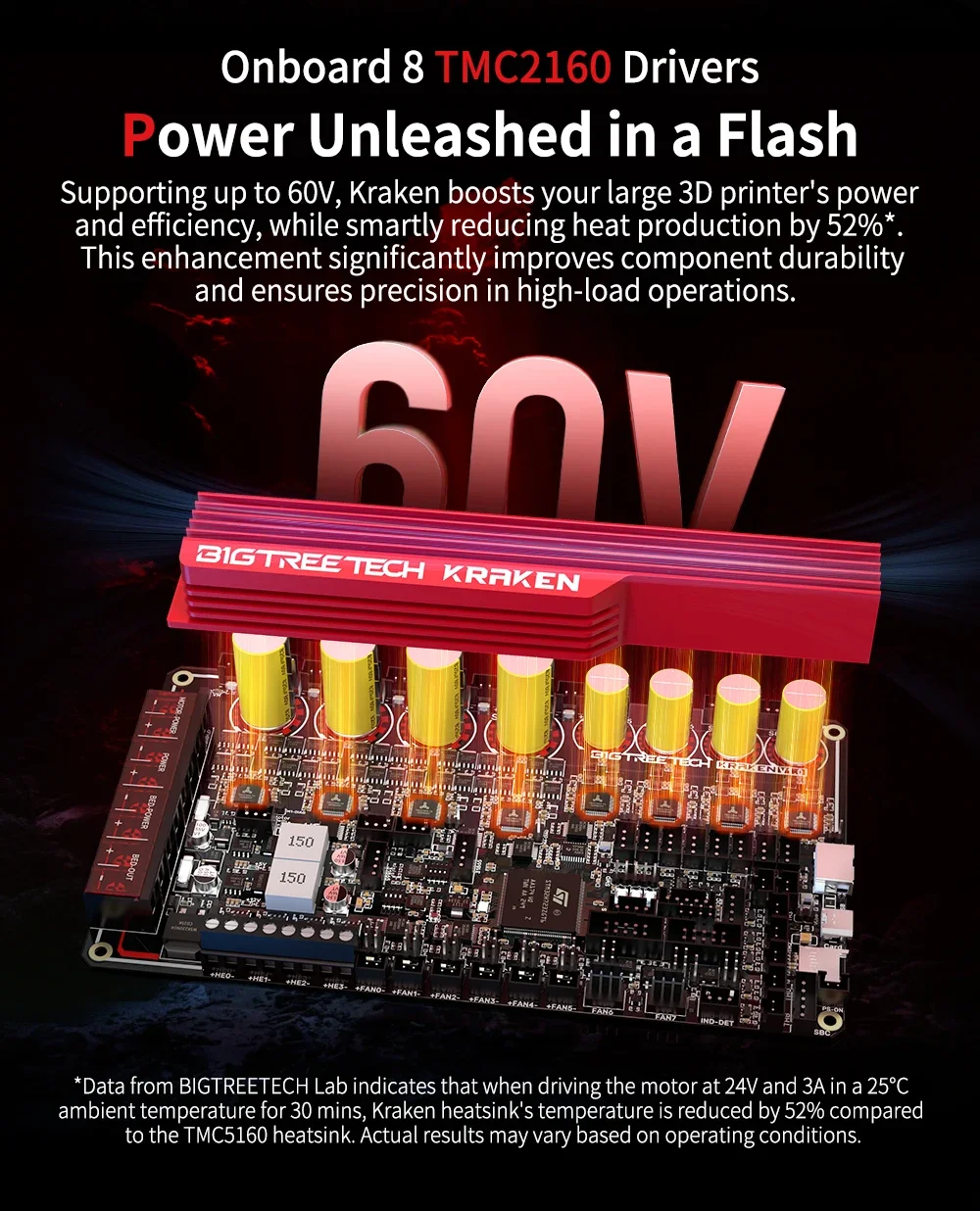

Onboard 8 TMC2160 Drivers:Up to 60V motor input voltage.

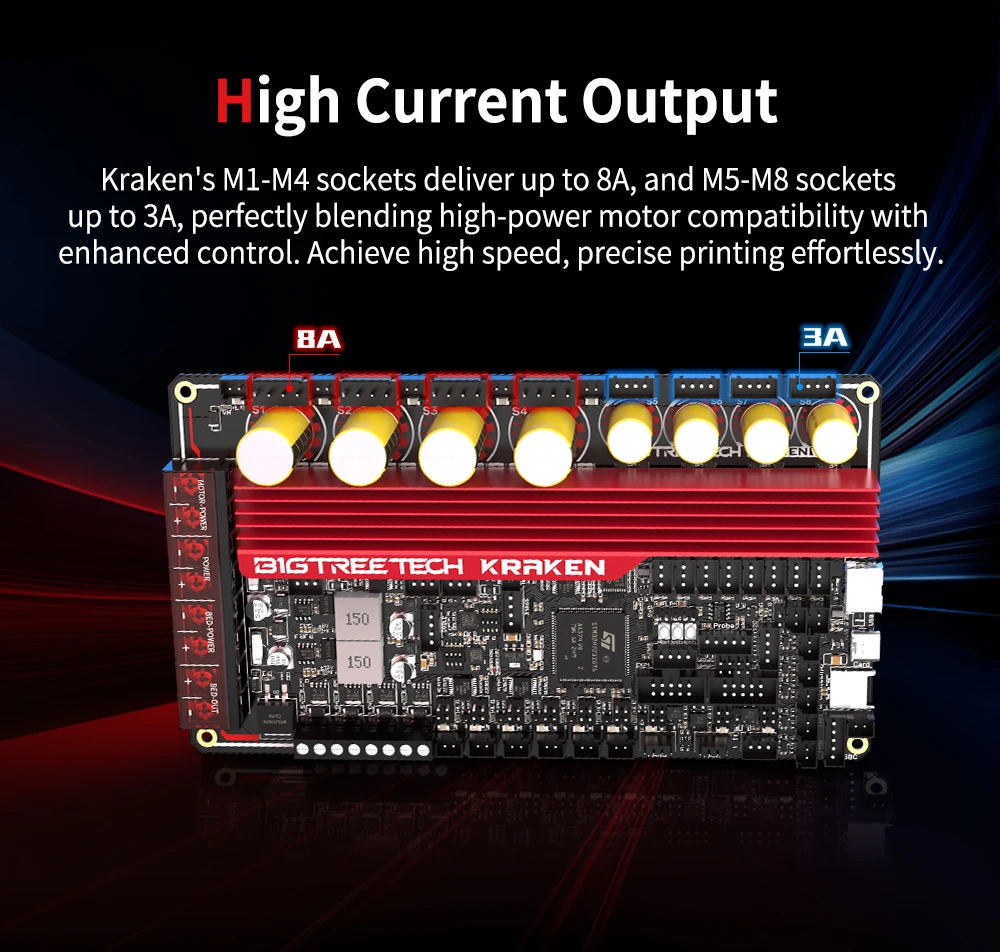

Max 8A driving current for M1-M4, Max 3A for M5-M8.
All-metal Integrated Heatsink:Beat the heat.

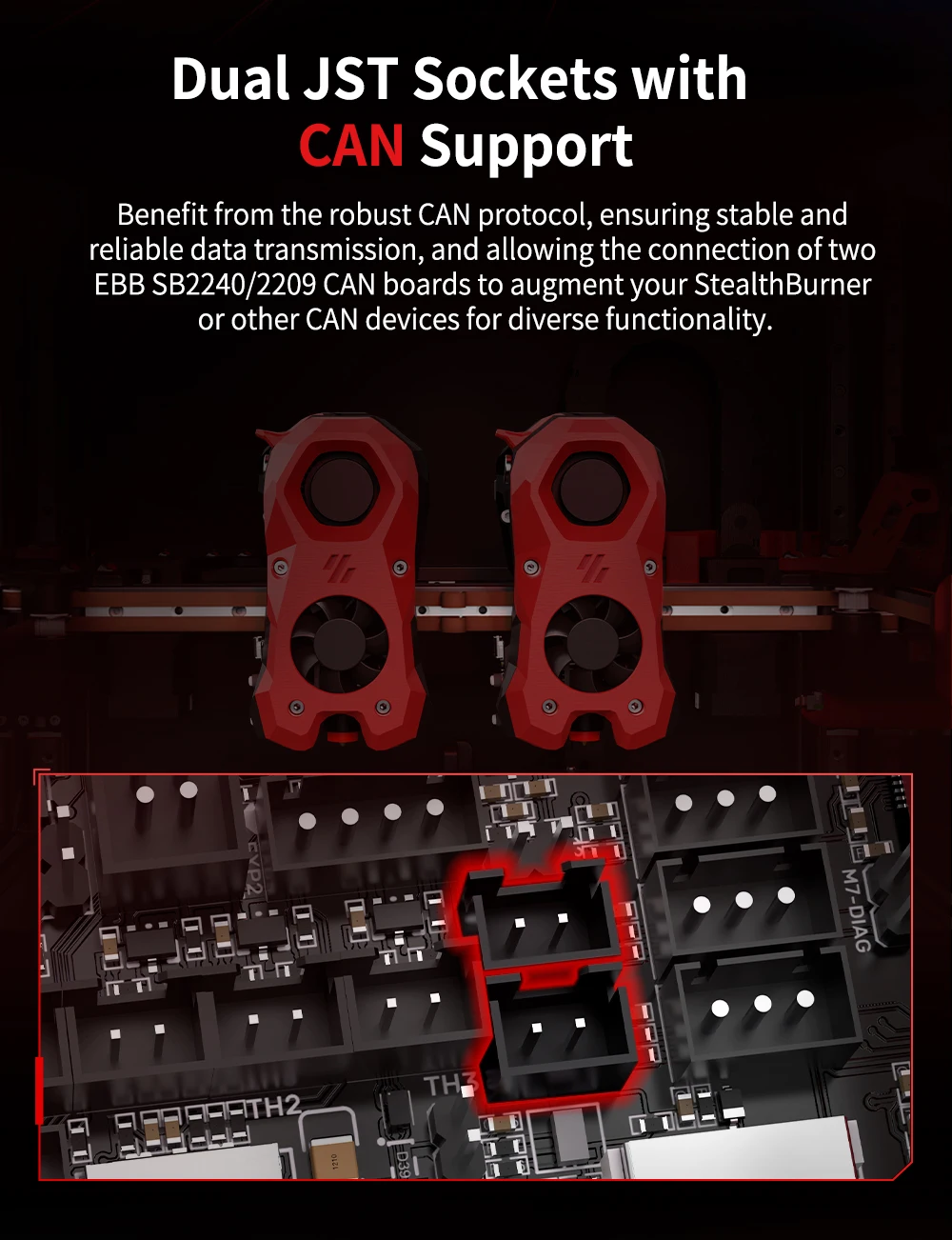

Dual JST Ports with CAN Support:Connect two EBB SB2240/2209 CAN for StealthBurner Mastery.
eFuse:Quick response, precision protection.

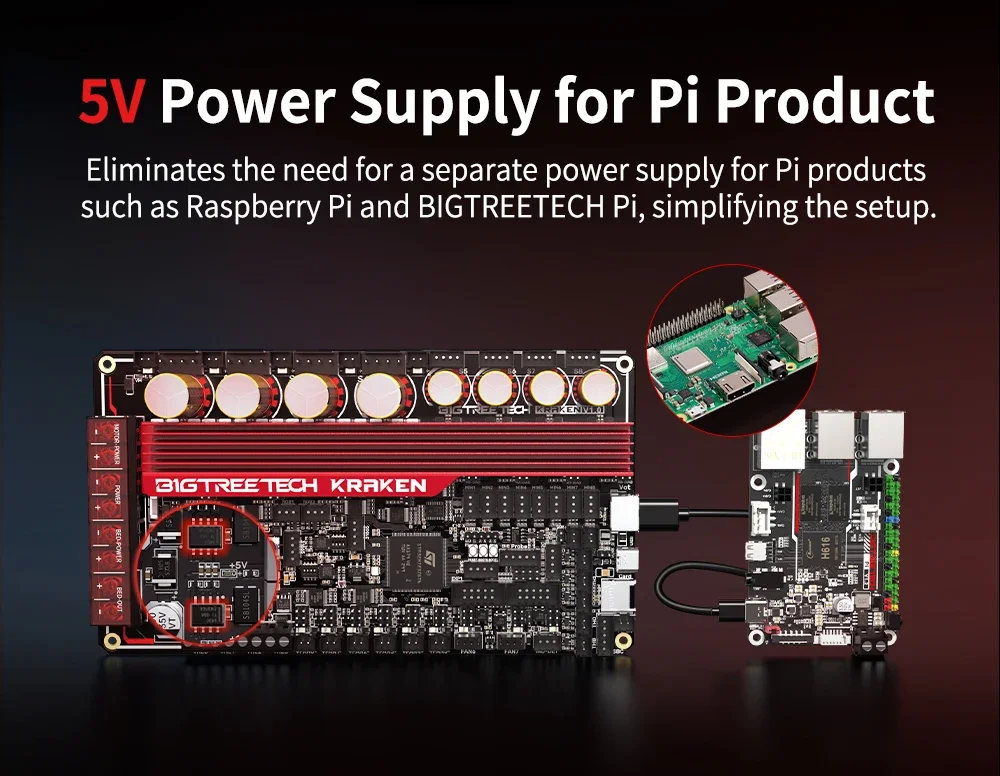

Power Supply for Raspberry Pi:5V with a maximum output current of 3A.
Features
Adopts 32-bit ARM Cortex-M7 series STM32H723ZGT6 main control chip with a main frequency of 550 MHz;
The power chip uses TPS5450-5A, which supports DC12/24V power input. The chip output current is up to 5A, with a peak value of 6A, which perfectly supports the Raspberry Pi power supply;
The motherboard reserves a BOOT button, and users can update the motherboard boot program through DFU;
Add a protection circuit to the thermistor part to prevent the main control chip from burning due to leakage from the heating bed or heating rod;
CNC fans are available in 24V, 12V and 5V voltages, eliminating the need for customers to connect external transformer modules, thereby reducing the chance of motherboard damage;
Onboard two-channel MAX31865 supports dual-channel PT thermocouples, and supports two-wire or four-wire PT100/PT1000 options, which is convenient for customers to DIY;
The MCU firmware can be upgraded through a MicroSD card or through DFU through Klipper's make flash command;
Onboard 8-channel TMC2160 driven SPI mode, onboard DIAG function pin, which can be used by simply removing and plugging the jumper cap;

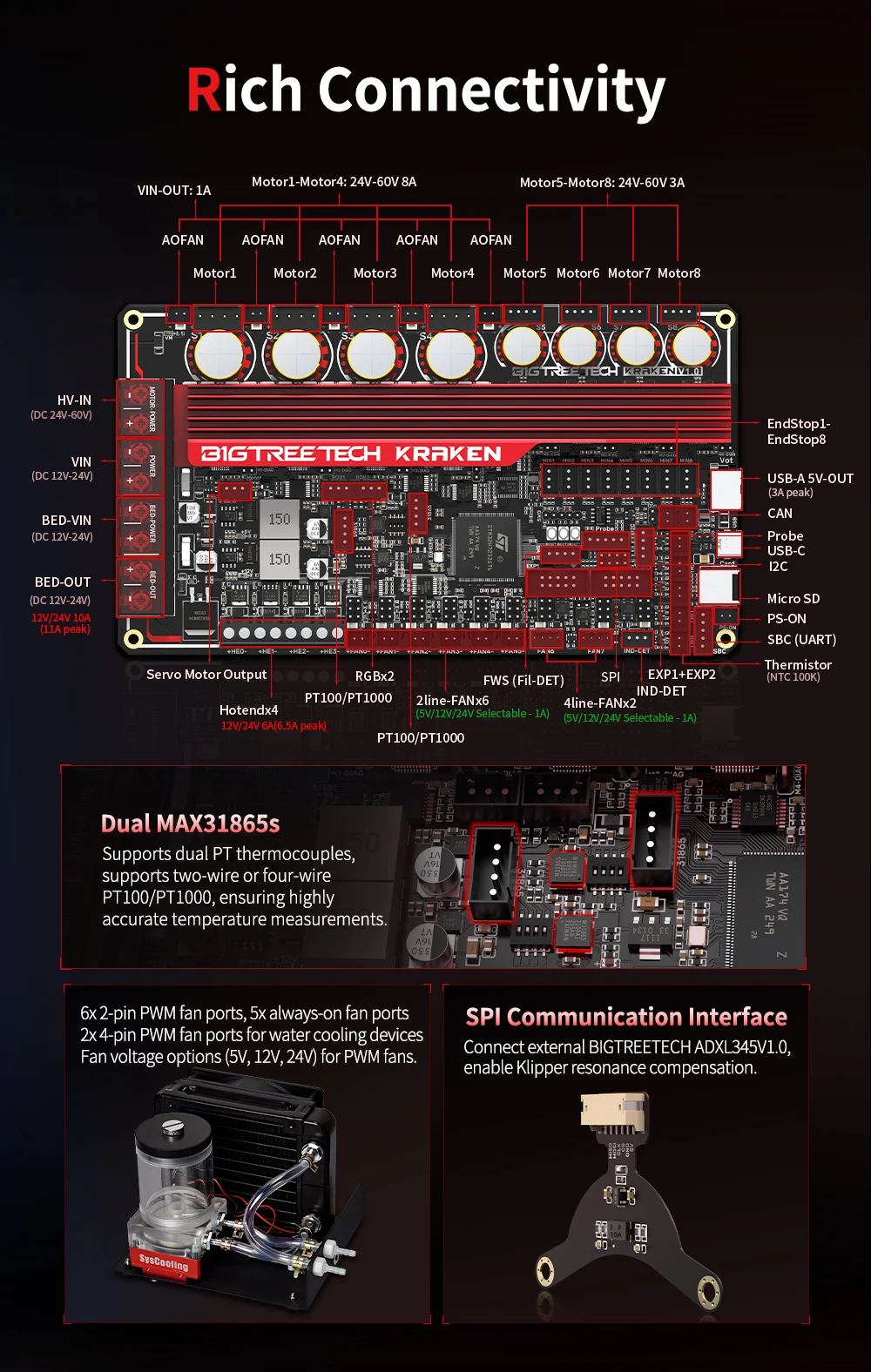

Reserved interfaces: material outage detection, shutdown after printing, Probe, RGB, I2C, servo interface, EXP1+EXP2, CAN, UART (SBC) interface, USBA power output interface, etc.;
Using high-performance MOSFET tubes to reduce heat generation;
Adopts replaceable fuse for easy replacement;
Two four-wire fan interfaces are reserved, 24V, 12V, and 5V voltages are optional, and can be used to connect water cooling devices;
Reserved proximity switch interface, supports NPN and PNP type selection, (24V, 12V, 5V) voltage optional;
An SPI expansion interface is reserved for customers using Klipper firmware to connect an external acceleration sensor for acceleration compensation;
TMC2160's MOS tube control power supply is provided by external DC12V, which reduces the driver's output impedance and reduces chip heat.

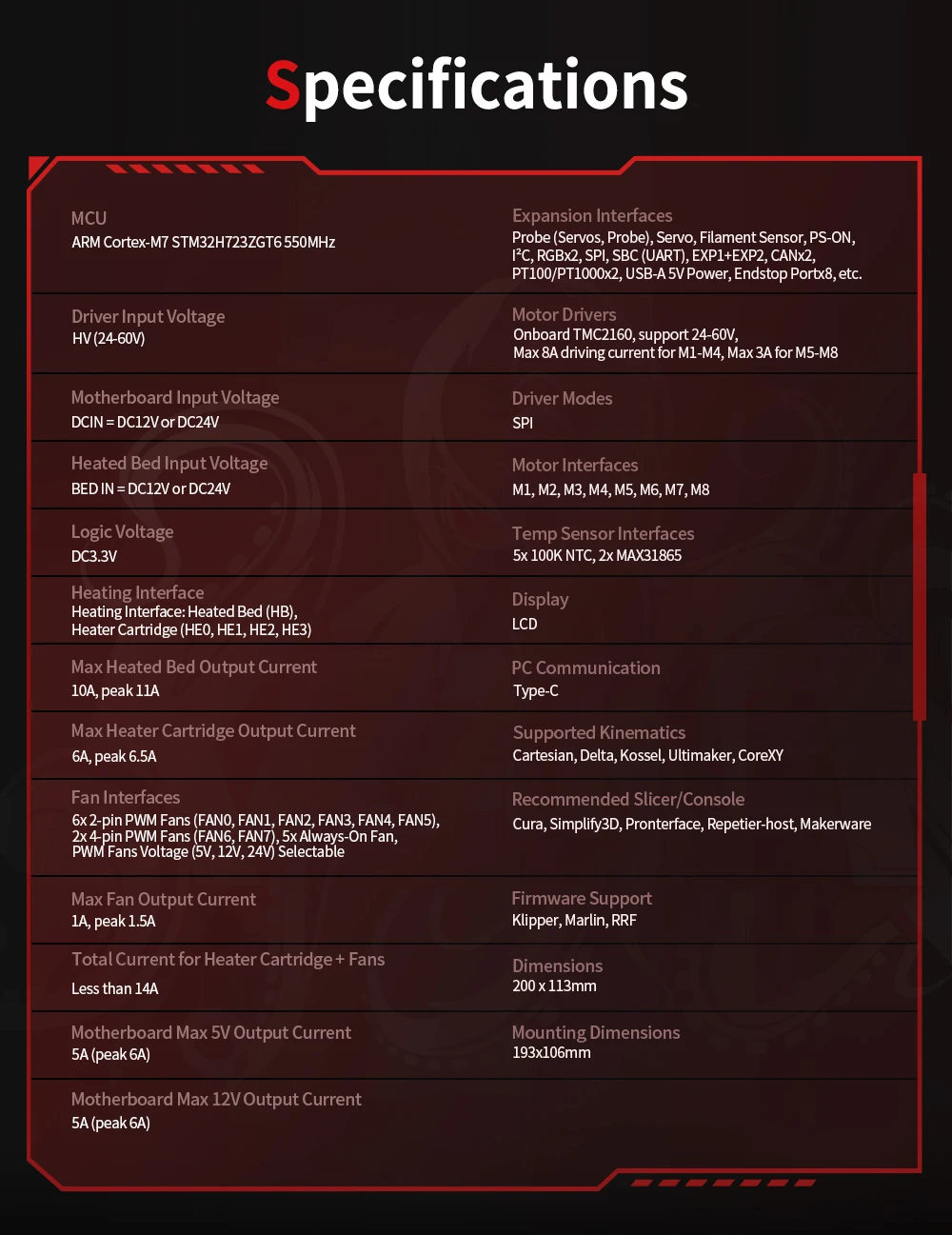

Specifications
MCU：ARM Cortex-M7 STM32H723ZGT6 550MHz
Driver lnput Voltage：HV（24-60V）
Motherboard lnput Voltage：DCIN = DC12V or DC24V
Heated Bed lnput Voltage：BED IN = DC12V or DC24V
Logic Voltage：DC3.3V
Heating lnterface：Heated Bed (HB), Heater Cartridge (HE0，HE1，HE2，HE3)
Max Heated Bed Output Current：10A，peak 11A
Max Heater Cartridge Output Current：6A，peak 6.5A
Fan lnterfaces：6x 2-pin PWM Fans（FAN0,FANI, FAN2, FAN3, FAN4,FAN5), 2x 4-pin PWM Fans（FAN6,FAN7), 5x Always-On Fan，PWM Fans Voltage（ 5V，12V，24V）Selectable
Max Fan Output Current：1A，peak 1.5A
Total Current for Heater Cartridge + Fans：Less than 14A
Motherboard Max 5V Output Current：5A(peak 6A)
Motherboard Max 12V Output Current：5A(peak 6A)

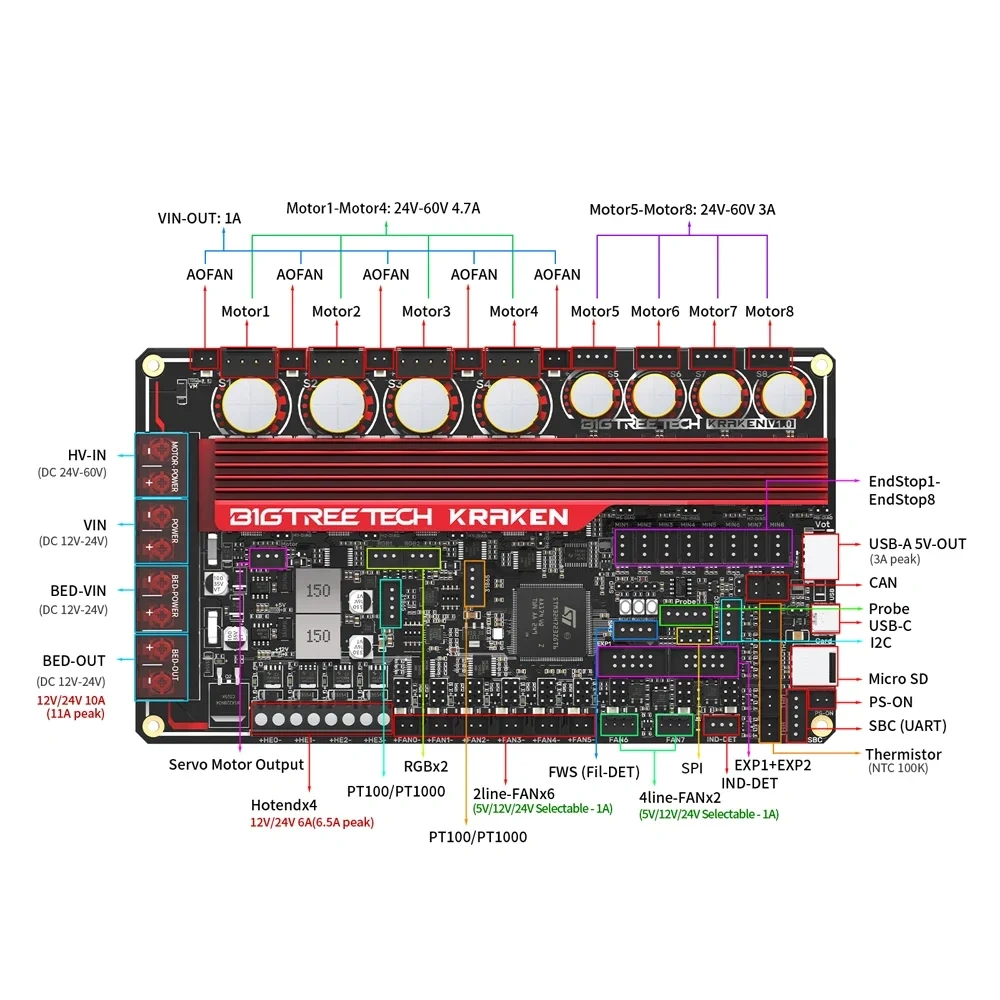

Expansion lnterfaces：Probe(Servos，Probe), Servo，Filament Sensor，PS-ON，I2C，RGBx2，SPI, SBC (UART), EXP1+EXP2，CANx2，PT100/PT1000x2，USB-A 5V Power, Endstop Portx8，etc.

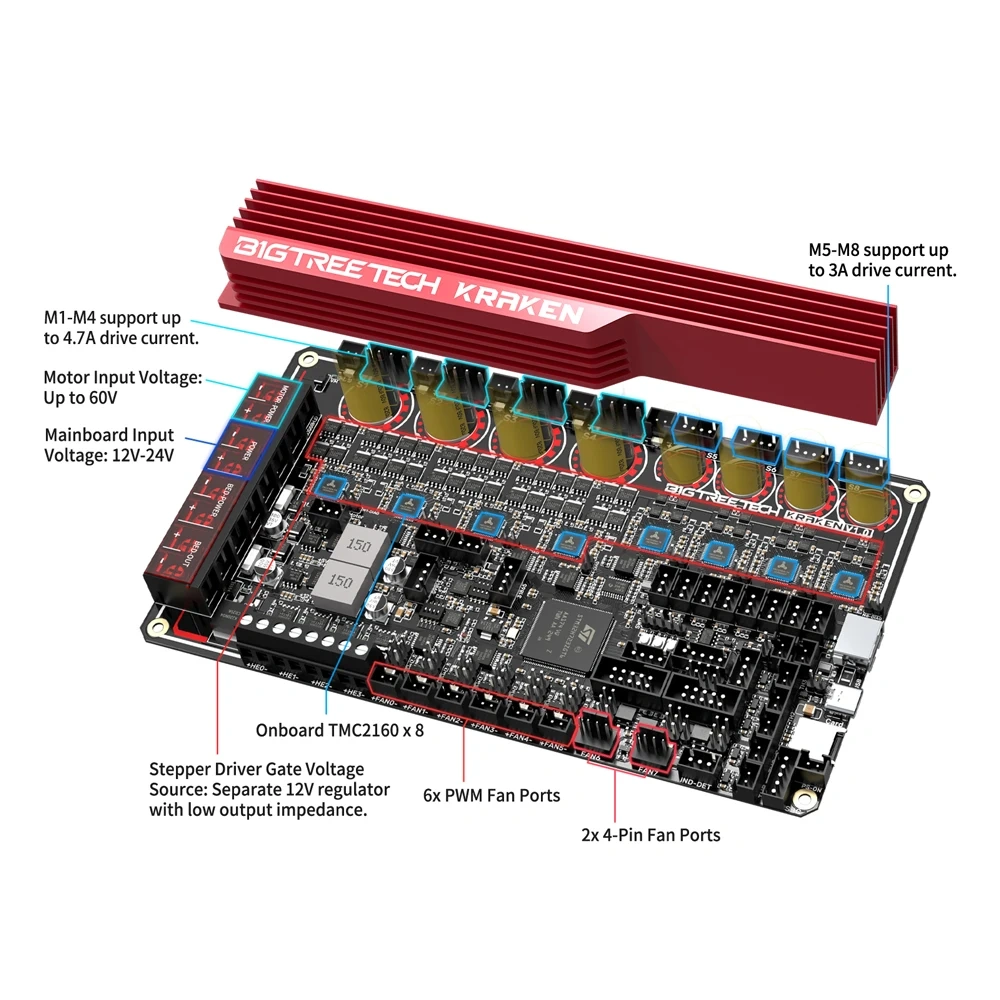

Motor Drivers：Onboard TMC2160，support 24-60V，Max 8A driving current for M1-M4，Max 3A for M5-M8
Driver Modes：SPI
Motor Interfaces：MI，M2，M3，M4，M5，M6，M7，M8
Temp Sensor lnterfaces：5x 100K NTC，2x MAX31865
Display：LCD
PC Communication：Type-C
Supported Kinematics：Cartesian，Delta，Kossel, Ultimaker，CoreXY
Recommended Slicer/Console：Cura, Simplify3D，Pronterface，Repetier-host，Makerware
Flrmware Support：Klipper, Marlin,RRF

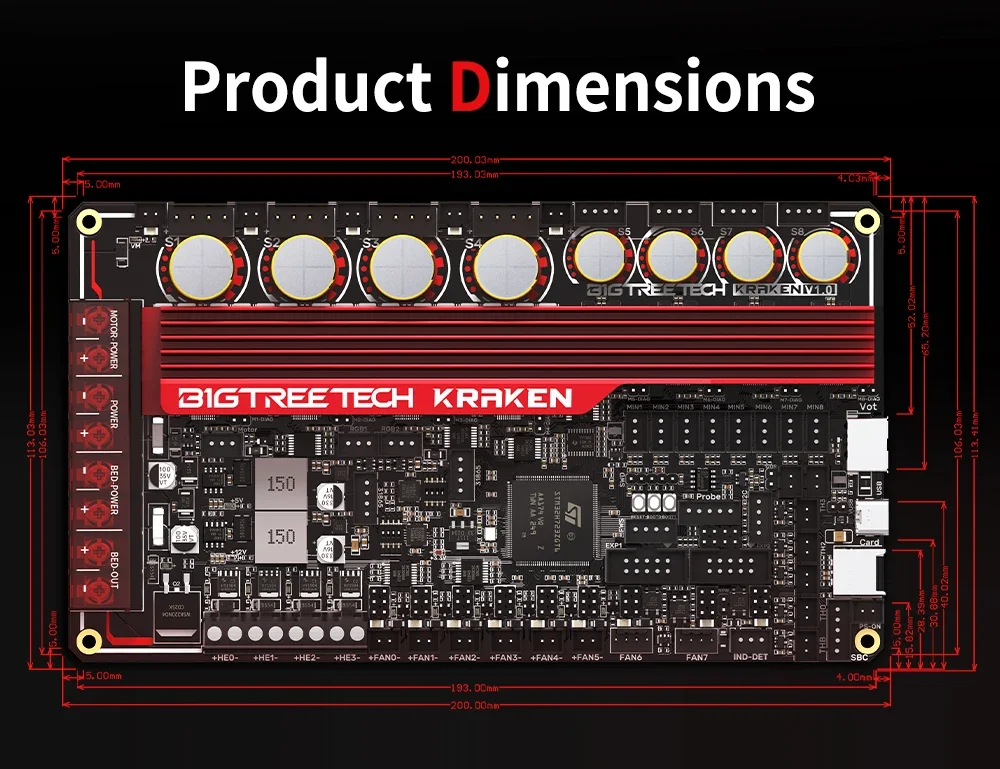

Dimensions：200x113mm
Mounting DlmenSlons：193x106mm
https://github.com/bigtreetech/BIGTREETECH-Kraken
