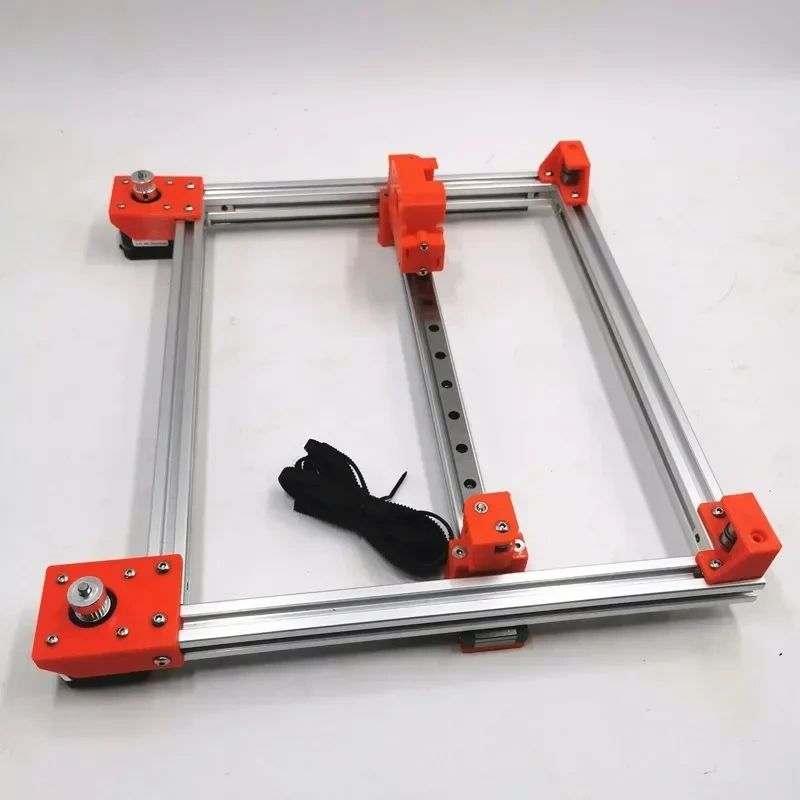

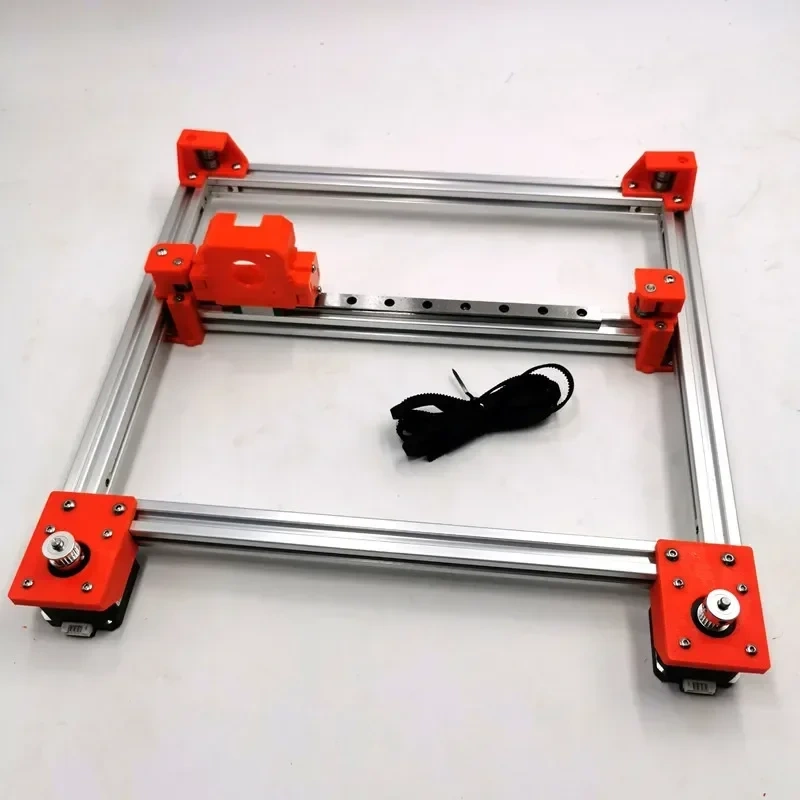

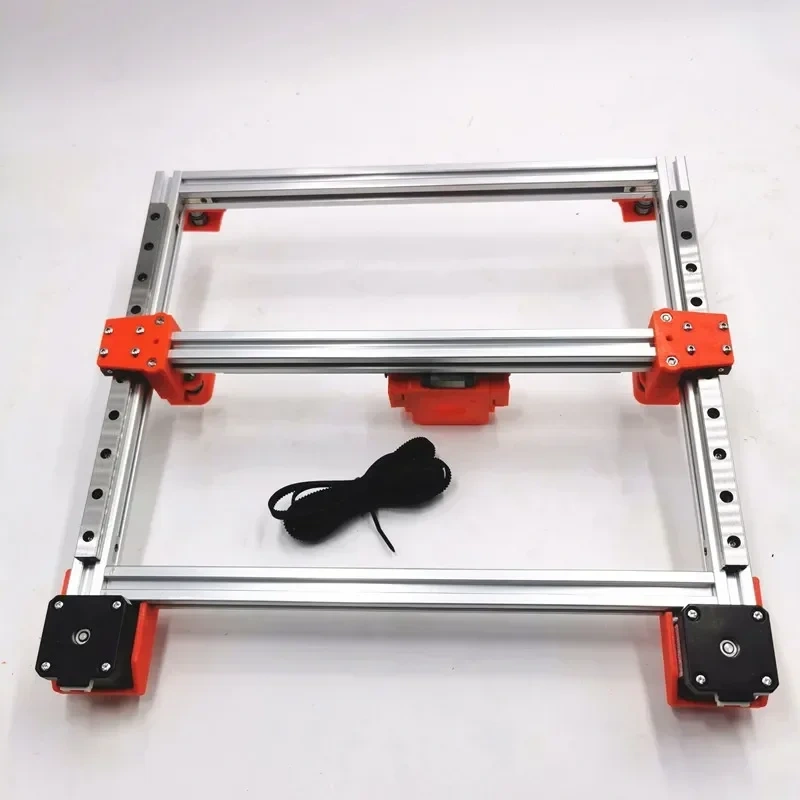

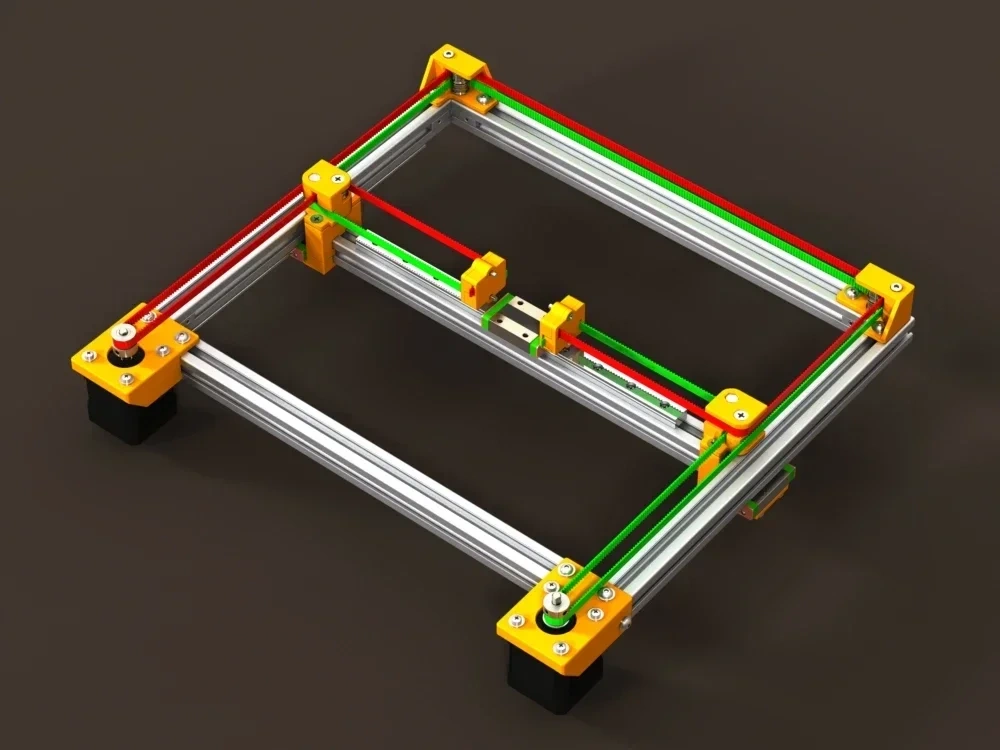

Funssor CoreXY Frame v.2.0 for laser and 3D printer DIY 2020 extrusion frame with MGN12C linear

Funssor CoreXY Frame v.2.0 upgrade aluminum parts kit for laser 3D printer DIY 2020 extrusion frame MGN9C MGN12C linear - AliExpress

Working travel is 200mm in X axis , 235mm in Y axis

The printed parts are in 40% fill Totally 0.2mm layer PETG filament.

If you wanna other printing color,you can  find resource  in below link.

https://www.thingiverse.com/thing:2138286

2020 extrusion 323mm 1 pcs

2020 extrusion 306mm 2 pcs

MGN12Crail 250mm 3 pcs

4x 25mm countersunk M4 screws (gantry idler bearings)

10x 10mm buttontop M4 screws (motor mounts, corner idler

bearing mounts, gantry rail mounts)

2x 30mm socketcap M4 screws (corner idler bearings)

2x M4 0.5mm washers (corner idler bearings)

8x M4 Nuts (gantry idler bearings)

8x 10mm buttontop M3 screws (NEMA17 motors)

8x 6mm buttontop M3 screws (MGN12C linear rail)

If you can get printed parts by yourself,please choose the no printed parts option.
