Note:Please donot choose NO WELDED OPTION if you donot have equipment or are not able to do a soldering job this tiny.The thermistor would be damaged if not welded properly.
For Welded Version,please check below link for purchase .
1pcs IDM scanner Leveling sensor Only compatible with klipper For DIY Voron,VZ 3D printer - AliExpress
Terminal size :ph2.0

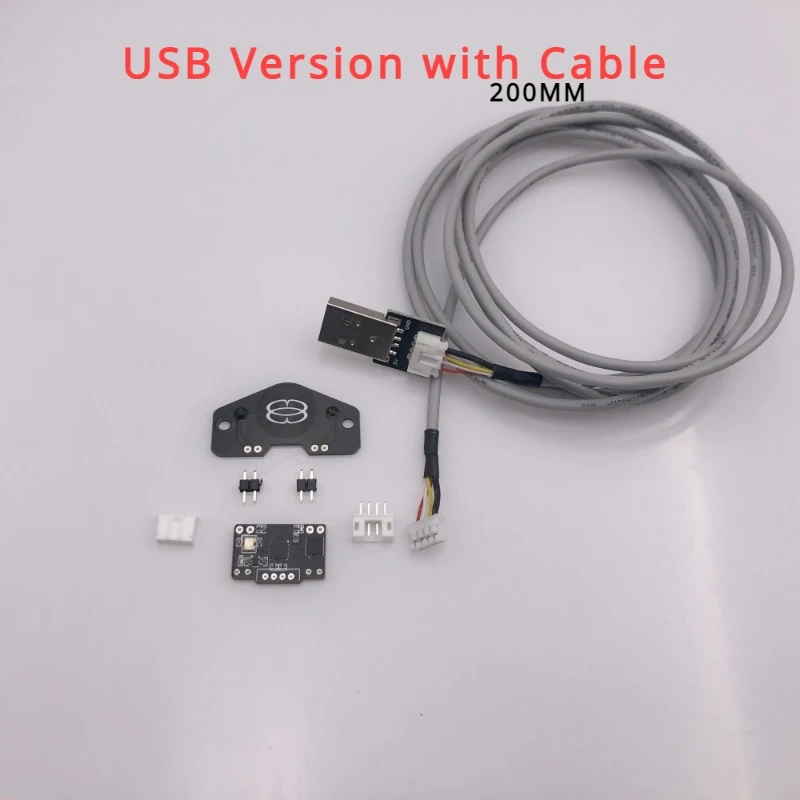

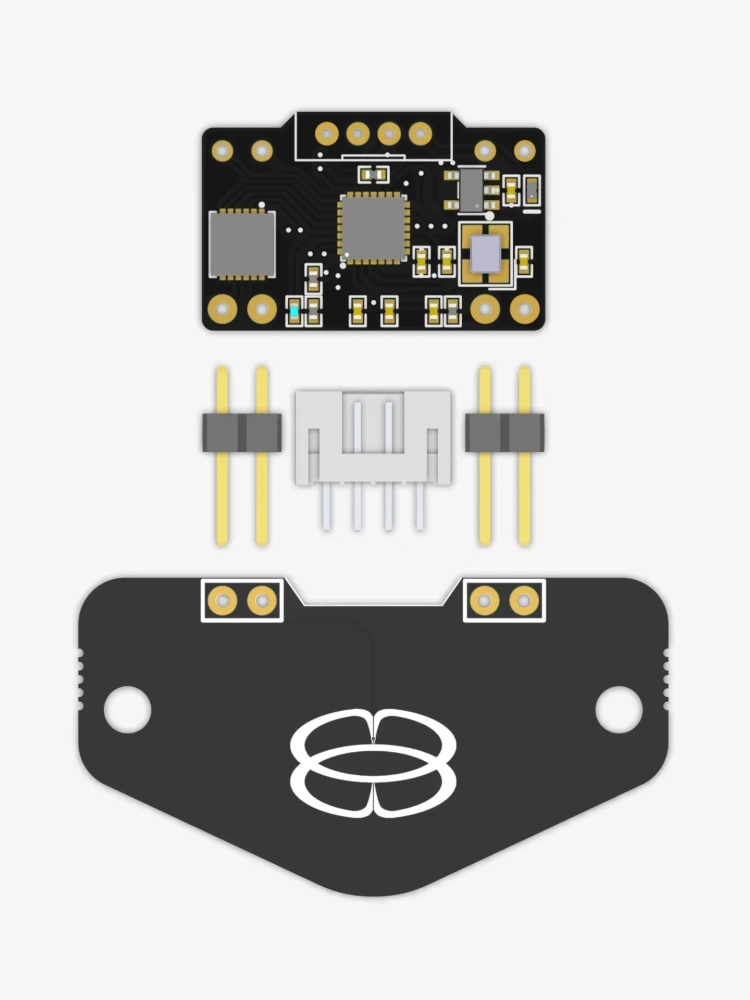

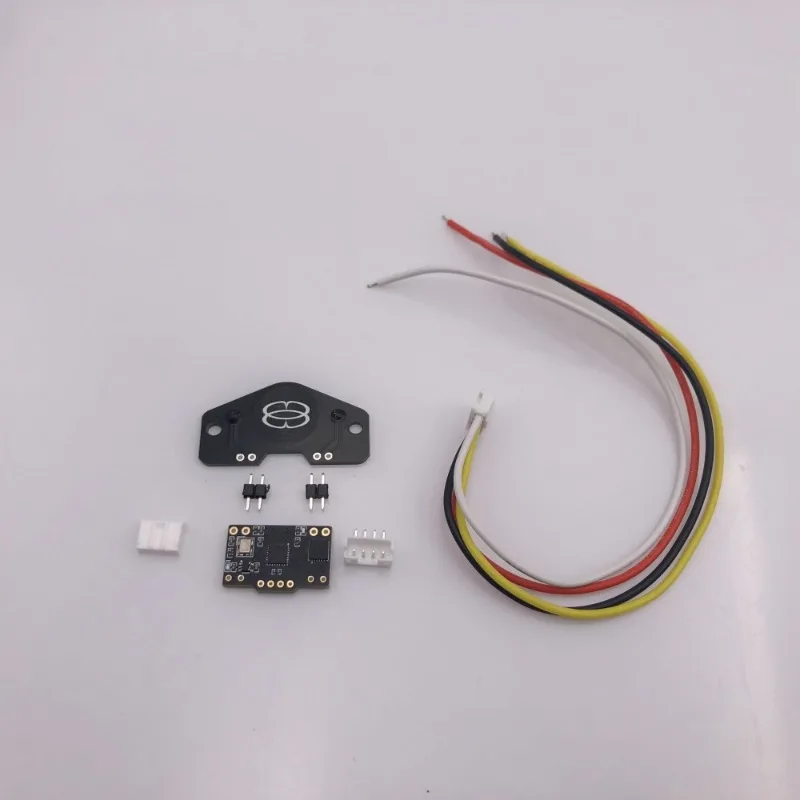

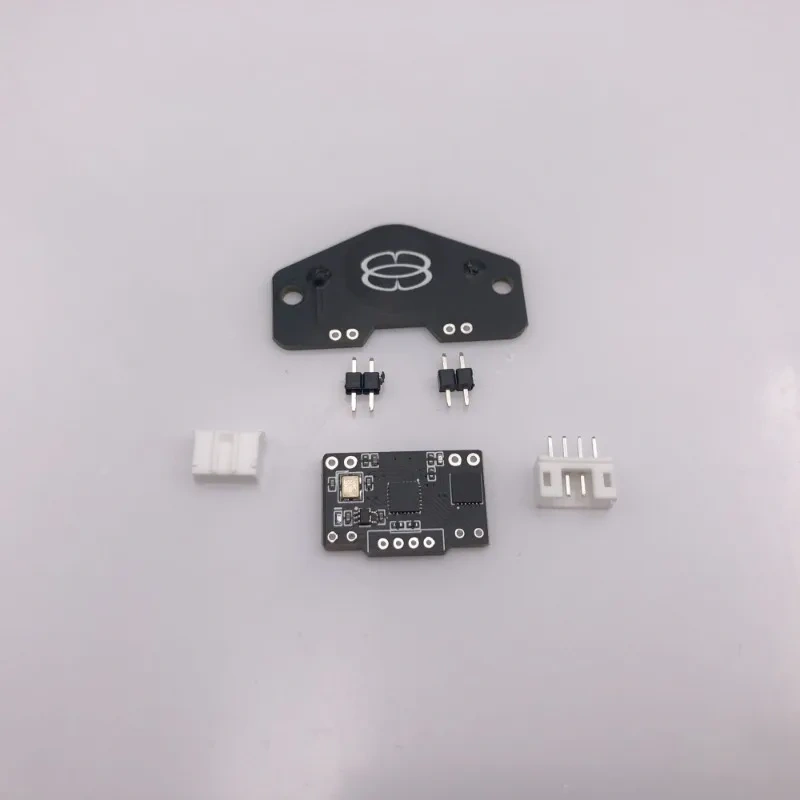

parcel includes1pcs board +1 pcs cable(Option)
Note:1）The IDM is different from the Beacone.Please do contact us for instruction and read it before assembling.2)The IDM Board does not work in armbian systerm 3)the chipset or the max operating temperature of IDM Probe is 85degree;4)it work with the wham bam build surface that has a magnetic sticker under spring steel pei plate.
FAQ for the item:
Q1)hi...the sensor with which plates doesn't work with neodymium magnets?? Does it work with the PEI mat plus magnet??

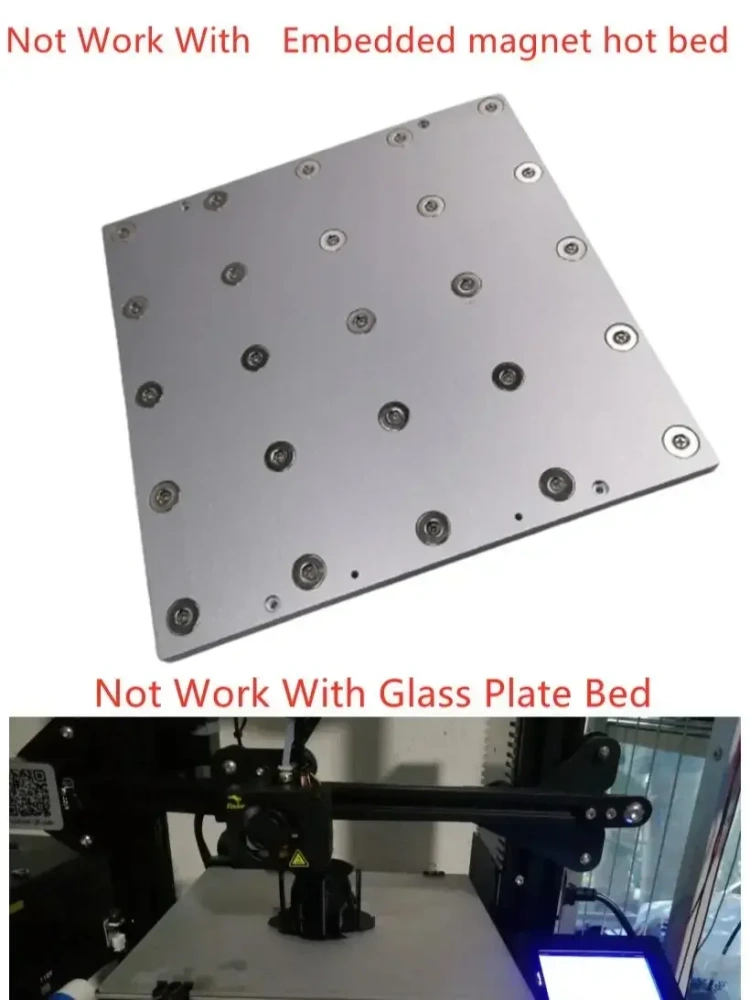

A1)The sensor doesnot work for plate with embedded magnes and Non Metal plate like Glass bed.It work with PEI Coated plate plus Magnet Tape Or PEI Spring Plate plus Magnet Tape.
Q2how do I set up the IDM scanner? does it use the same software as the beacon probe?
A2)It doesnot use same software as the beacon probe.Please kindly contact us for Instruction after purchase .
Q3)Whether CAN module include lis2dw chip?Can I use CAN idm module with 24 volts?
A3)Now the CAN module include ADXL345 Chip and USB module includes lis2dw chip.For safty,both versions only supports 5V.
Q4)what are the distance bettwin nozze and idm scanner? A4) The distance recommended is 3MM
Q5)Is this a model that can measure resonance?
A5)Yes,it can measure resonance.
Q6)Is the CAN Version board already flashed with canboot?
A6)Yes, it is already flashed with canboot

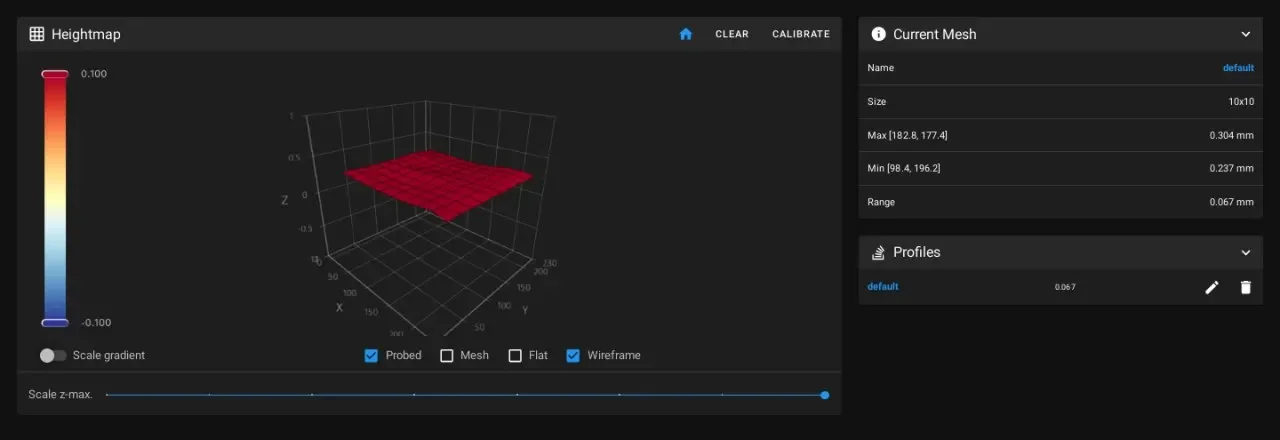

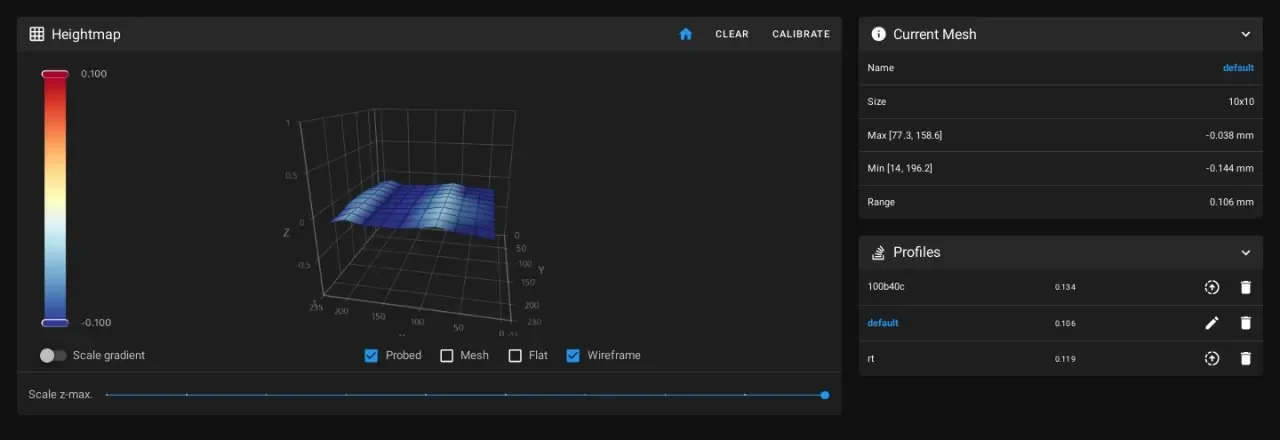

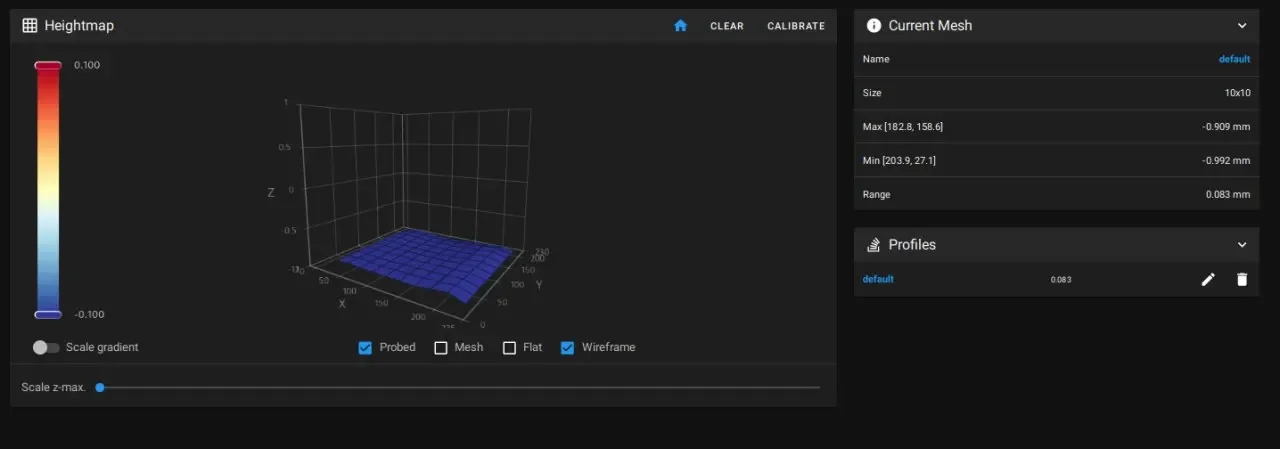

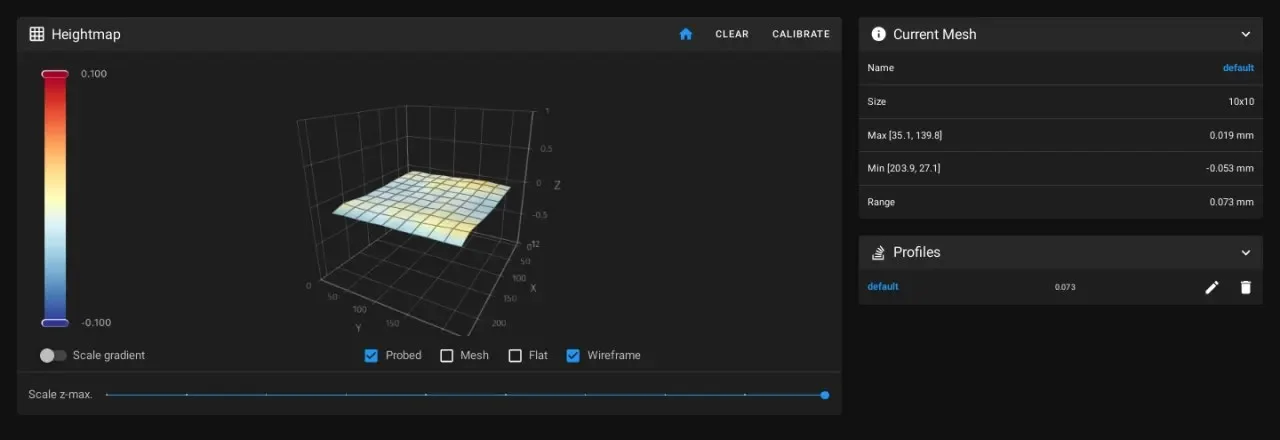

The screwnshot shows that the performance of different Heating Plates on the same table.(Two Sided PEI Board from Two Trees,Steel Plates from FYSETC,VZ235 PEI Plate From Mellow,and Locally Cutted Bare Steel Plates).The Merlot Rise in the center of the leaf is likely the result of the emblem carving.If the leaves are filipped,the wave pattern will change direction.
FAQ for the item:
Q1)hi...the sensor with which plates doesn't work with neodymium magnets?? Does it work with the PEI mat plus magnet??
A1)The sensor doesnot work for plate with embedded magnes and Non Metal plate like Glass bed.It work with PEI Coated plate plus Magnet Tape Or PEI Spring Plate plus Magnet Tape.

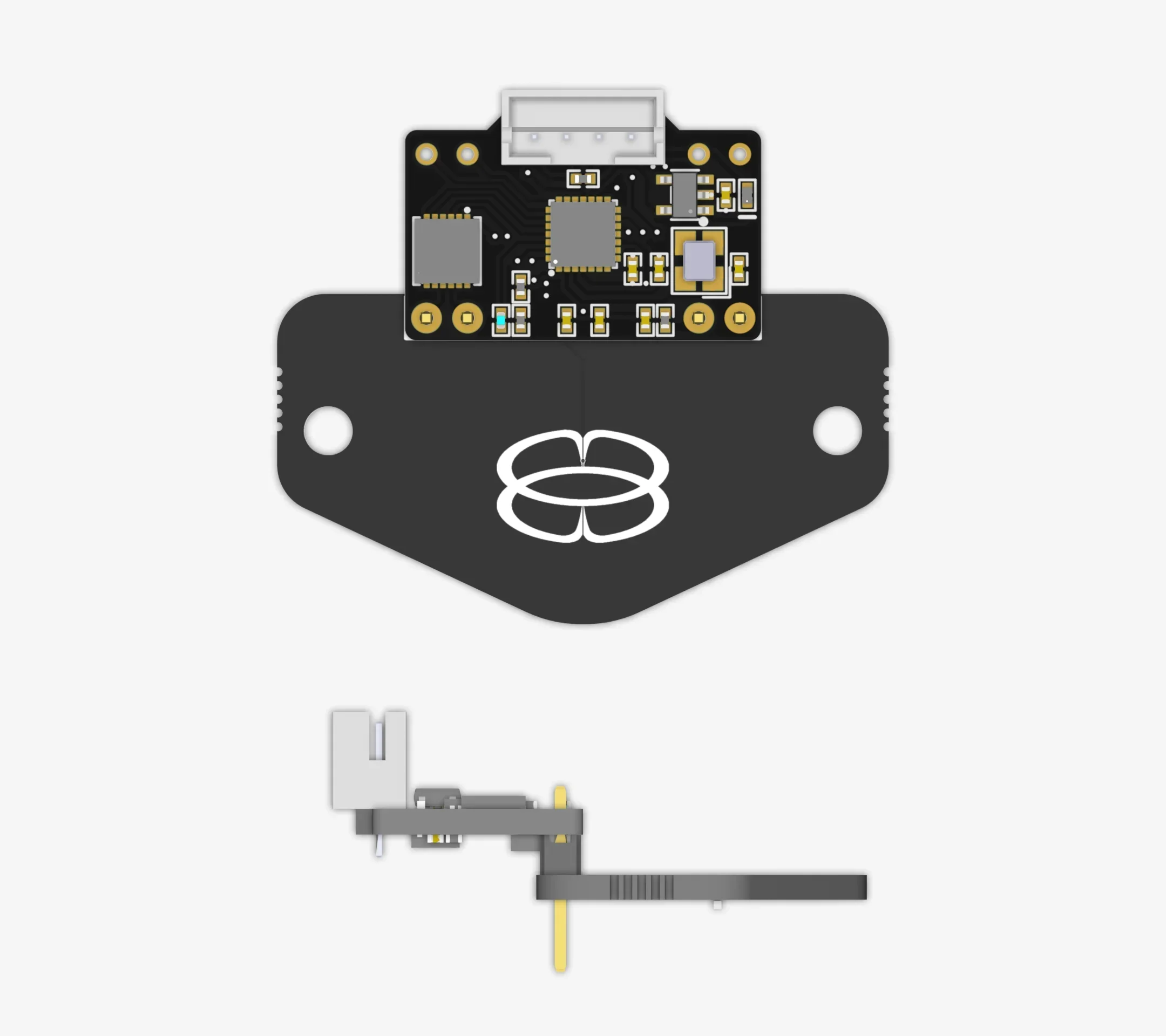

For Voron :

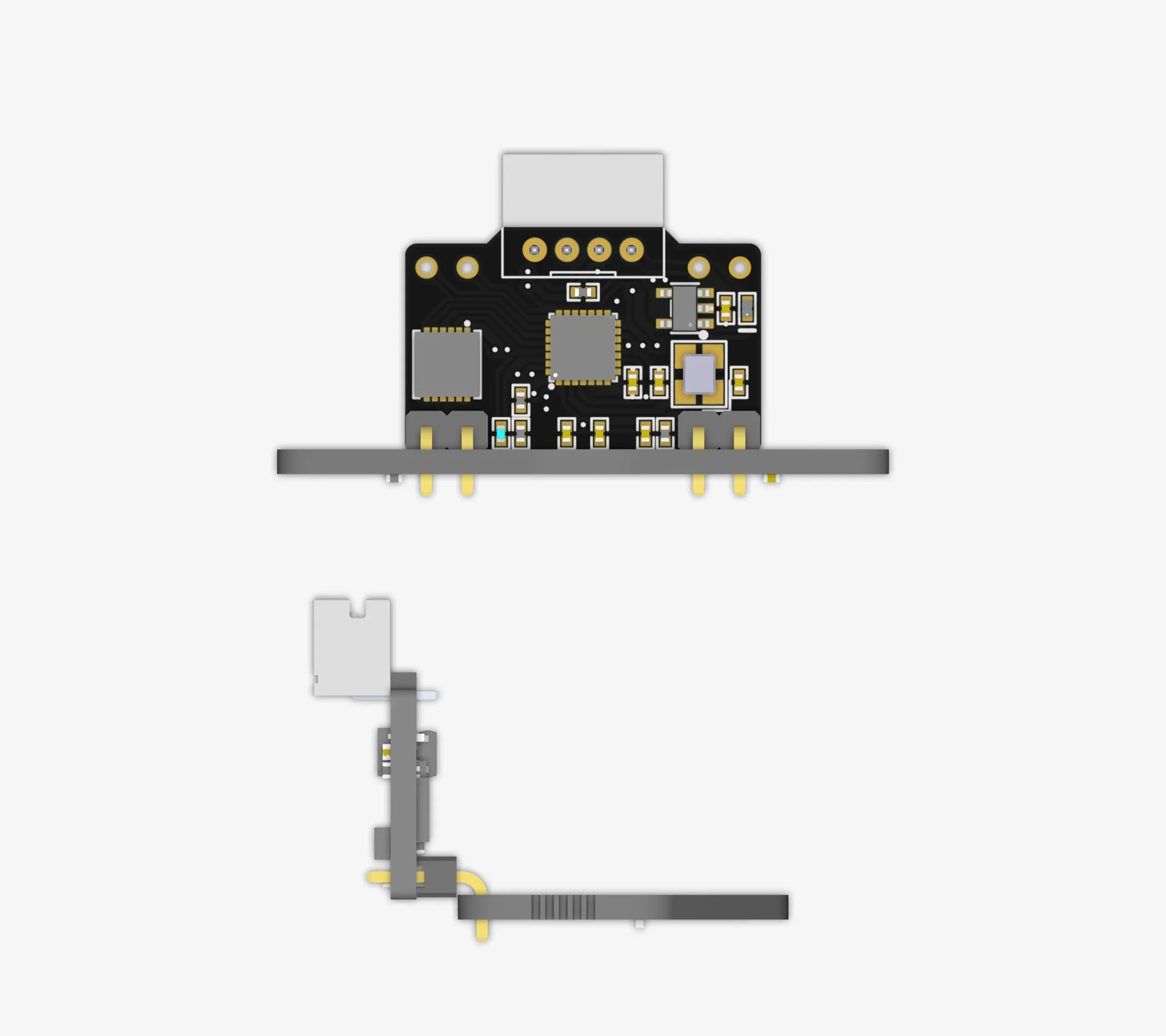

For VZ:
90Degree Type:
